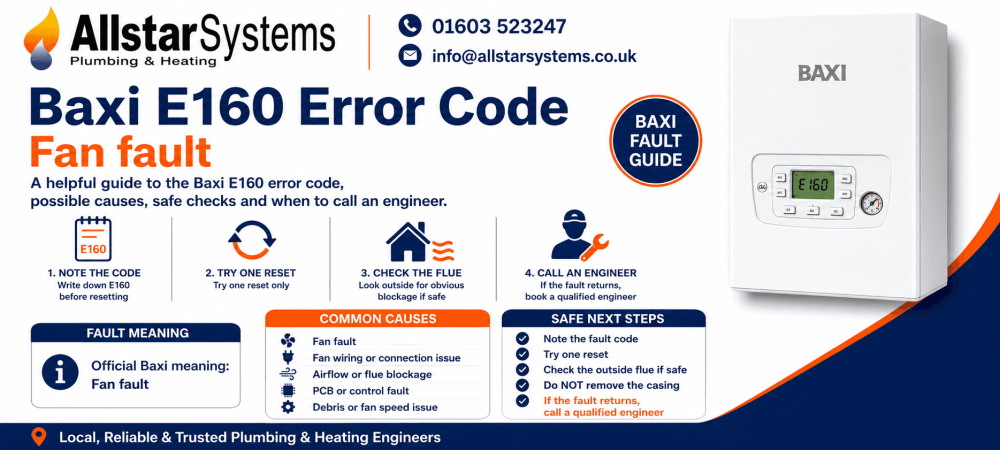

Baxi E160 Error Code: Meaning, Causes and Safe Checks

The Baxi E160 error code usually points to a problem with the fan circuit. In many cases, the fan itself has failed. However, damaged wiring or restricted airflow could also trigger the warning.

This issue differs from low pressure, poor ignition, or a hot water sensor problem. Therefore, you should treat E160 as an air movement and fan-control issue.

A reset may help once, but repeat lockouts need professional testing.

What does the Baxi E160 code mean?

The E160 code means the appliance cannot confirm correct fan operation. The fan plays a key safety role because it helps move combustion gases through the flue.

If the control board detects poor fan performance, it stops the heating appliance. This protects your home and prevents unsafe operation.

Why does E160 appear?

Several issues may cause this warning. Some involve the fan motor. Others relate to wiring, airflow, or control signals.

Fan failure

The fan may wear out over time. Bearings can become stiff, and the motor may stop running at the right speed. As a result, the appliance may shut down before it starts properly.

You may also hear unusual humming, clicking, or whirring before the lockout appears.

Damaged fan wiring

A loose lead or damaged cable can stop the fan from sending the correct signal. This may happen because of age, heat, vibration, or wear inside the unit.

A qualified engineer can test the wiring safely and confirm whether the fan receives power.

Restricted airflow

The appliance needs clear airflow to run safely. If airflow becomes restricted, the fan may struggle to do its job. This does not always mean the fan has failed.

Possible causes include debris near the flue, internal dirt, or a blocked air path. However, you should not remove covers or inspect sealed parts yourself.

PCB or control issue

Sometimes the fan works, but the control board does not read the signal correctly. A PCB fault, loose connection, or sensor issue may interrupt the start-up sequence.

These problems need diagnostic equipment. Therefore, guesswork rarely helps.

Safe checks you can make first

You can complete a few simple checks before arranging a repair.

First, reset the appliance once, but only if your Baxi manual recommends it. Follow the instructions for your exact model.

Next, check the outside flue terminal from a safe position. Look for leaves, nesting material, ice, or other visible blockages. Do not remove any parts.

Then, note any other signs. For example, write down noises, repeated lockouts, extra codes, or poor heating performance. These details may help the engineer find the cause faster.

Do not open the casing. Fan, wiring, and flue checks involve safety-critical parts.

Can you fix E160 yourself?

You may reset the appliance if the user manual says this is safe. You may also carry out a simple visual check around the external flue.

However, you should not repair the fan, wiring, PCB, or internal airflow parts yourself. These areas sit inside the sealed case and need a Gas Safe registered engineer.

When should you call an engineer?

Call an engineer if the E160 code returns after one reset. Also, book help if the appliance will not start, shuts down repeatedly, or makes unusual fan noises.

You should also arrange a visit if you suspect damaged wiring or poor airflow. A professional can test the fan speed, check the wiring, inspect the flue route, and confirm whether replacement parts are needed.

How to reduce the risk of future E160 problems

Regular servicing helps lower the chance of fan-related breakdowns. During a service, an engineer can inspect key parts, test safe operation, and spot early signs of wear.

You can also keep the outside flue terminal clear. In addition, act quickly when unusual noises or repeated lockouts begin. Early checks often prevent a small issue becoming a larger repair.

Final advice

The Baxi E160 error code usually means the appliance has detected a fan or fan-control problem. It should not be treated as a general warning.

Try one reset if your manual allows it. However, if the code returns, arrange a safe inspection. Because this issue may involve the fan, wiring, flue, or PCB, a qualified engineer should handle the repair.
