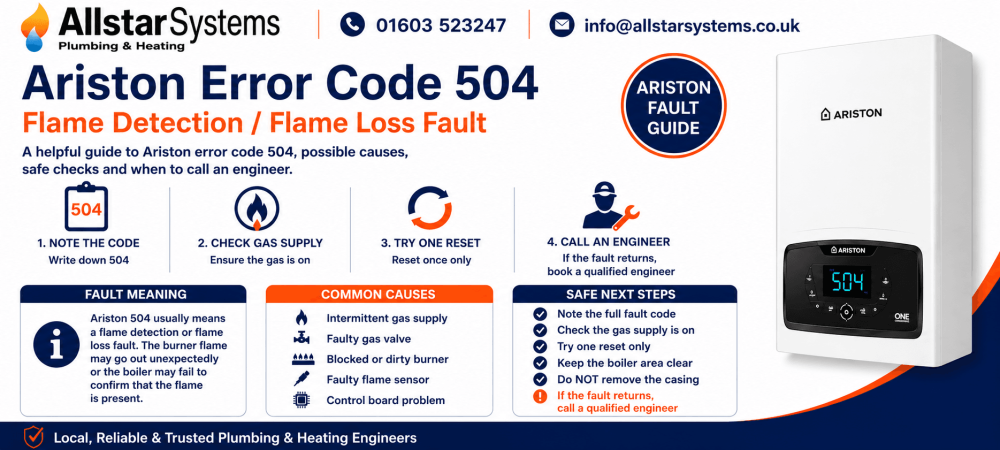

Ariston Error Code 504: Causes, Fixes and Safe Checks

Ariston error code 504 points to a burner signal problem. In simple terms, the boiler has lost confirmation that the burner is working as expected.

This matters because the heating unit must prove safe combustion before it carries on. So, it shuts down when the reading looks wrong.

You may lose heating, hot water, or both. Even so, the screen message only gives a starting clue. It does not confirm the exact cause.

What does Ariston 504 mean?

Ariston 504 means the boiler has detected poor burner recognition or a missing ignition signal.

Sometimes, the burner lights but then cuts out. At other times, it lights correctly, yet the sensing electrode does not prove ignition.

As a result, the unit enters lockout. This safety step helps prevent unsafe operation.

You could complete a few simple outside checks. However, internal work must stay with a Gas Safe registered engineer.

Why does this code appear?

This message can appear for several reasons. Usually, the cause sits within fuel supply, airflow, ignition, or electronic control.

Uneven fuel supply

A weak or irregular fuel supply can make the burner stop during use.

This may happen during a wider supply issue. It may also happen if flow to the heating unit becomes restricted.

Gas valve fault

The gas valve controls fuel entering the burner.

If it sticks, fails, or works unevenly, combustion can become weak or unreliable. The unit then stops because safe burning cannot continue.

Dirty burner area

A burner needs clean, steady flow. Dust, rust, debris, or corrosion can disturb the flame pattern.

Consequently, the boiler may lose its burner signal and display 504.

Flue or airflow restriction

The appliance needs clean air and a clear flue route. If either path becomes blocked, combustion can suffer.

Leaves, nesting material, snow, plants, or damage can affect the terminal. However, never dismantle flue parts yourself.

Sensing electrode problem

The sensing electrode confirms that ignition has happened.

If it becomes dirty, worn, damaged, or poorly positioned, it can send a weak reading. The boiler may then shut down even after the burner starts.

PCB or wiring issue

The PCB helps manage ignition and read the burner signal.

Loose wiring, moisture, or board failure can affect this process. Therefore, this area needs proper testing, not guesswork.

Safe checks before calling an engineer

You can make a few basic checks without opening the boiler. However, do not remove the casing.

Check other fuel-burning appliances

First, see whether other fuel-burning appliances work as expected. For example, check whether a hob lights normally.

If nothing works, you may have a wider supply problem. In that case, contact your supplier or a qualified professional.

Try one restart

Next, restart the boiler once, following the manufacturer’s instructions.

If the message clears and stays away, it may have been a brief interruption. However, if 504 returns, stop pressing reset.

Repeated restarts can hide the real issue. They can also delay a safe repair.

Look for obvious outside blockages

Then check the visible flue terminal from ground level, where safe. Look for leaves, plants, snow, or debris.

Do not climb, remove covers, or touch flue parts. Also, never block vents or alter ventilation.

Note when the problem appears

Write down when the screen shows 504.

For example, does it happen during heating, hot water demand, or just after ignition? This detail helps the engineer find the fault faster.

When should you call a Gas Safe engineer?

Call a Gas Safe registered engineer if 504 returns after one restart.

You should also book help if the heating unit keeps locking out, loses ignition, or fails during heating or hot water use.

You also need expert support if the supply seems normal but the boiler still stops.

An engineer can test the valve, burner, sensing electrode, wiring, airflow, flue route, and PCB safely. They can also check combustion with the correct equipment.

Can the sensing electrode cause Ariston 504?

Yes. A faulty sensing electrode can trigger Ariston 504.

If it cannot read ignition correctly, the boiler shuts down. This can happen even when the burner starts as expected.

However, the sensing electrode is only one possible cause. Fuel flow, air movement, burner condition, wiring, and PCB signals may also play a role.

Therefore, proper diagnosis matters.

How to reduce the chance of Ariston 504 returning

Annual servicing helps reduce lockouts linked to ignition and combustion.

During a service, an engineer checks safety parts, inspects the burner area, and tests performance.

Good airflow also matters. So, keep the space around the boiler clear. Do not cover vents or store items close to the unit.

In addition, act early if you notice delayed ignition, repeated shutdowns, or unusual behaviour. Small signs often become bigger repairs later.

Always use qualified professionals for combustion-related work. This type of problem needs safe testing, not trial and error.

Final thoughts

Ariston 504 usually means the boiler has lost proof of safe burner operation.

You can check other appliances, try one restart, and look for clear outside blockages. However, do not open the casing or attempt internal repairs.

If the message returns, contact a Gas Safe registered engineer. They could confirm the cause and complete the correct repair.

With fast action and regular servicing, you help keep your heating safer, steadier, and more reliable.
